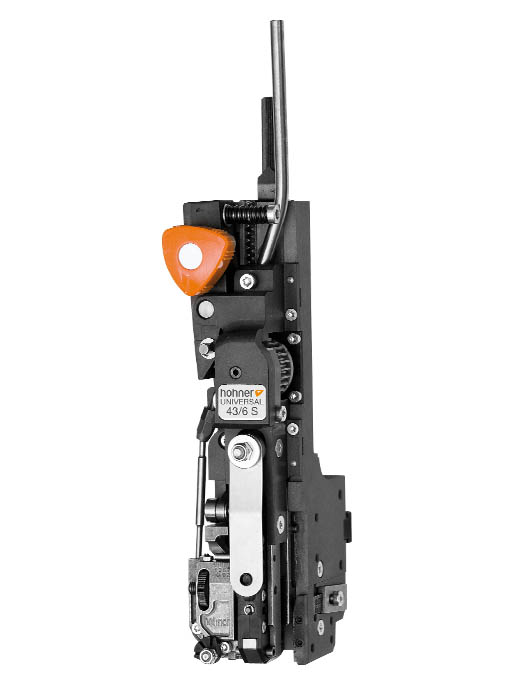

Name: Hohner Universal 43/6-S
Brand: Bindery Parts
SKU: Hohner_Universal_43_6_S
Availability: InStock

Product Summary:

Operator friendliness, manageability, and accessibility (i.e. fastening from the front)
Tooless wire length and cutting box adjustment for different thicknesses in seconds
Extremely easy conversions between standard and looop stitching with exchange parts sets
14.000 stitches per hour
Minimum distance between stitch centers down to 43 mm
Now more wear resistant with redesigned parts

Technical Information

Parameter	Standard stitching
Max. stitching thickness	6 mm
Min. distance between staples (standard)	43 – 52 mm
Crown width	12 mm
Round wire
→ No. 24 – 26 (0,6 – 0,5 mm)	✓
→ or No. 26 – 28 (0,6 – 0,5 mm)	✓
Optional exchange parts
for loop stitching	✓
round wire No. 24 – 26 (0,6 – 0,5 mm)	✓

Parameter	Loop stitching
Inner diameter of loop	6 mm (or 8 mm)
Max. stitching thickness	L6 = 3 mm L8 = 2 mm
Min. distance between staples	48 – 54 mm
Optional exchange parts
for loop stitching 6 mm	✓
for loop stitching 8 mm	✓
Round wire
→ No. 24 – 26 (0,6 – 0,5 mm)	✓
→ or No. 26 – 28 (0,5 – 0,4 mm)	✓

SKU: Hohner_Universal_43_6_S Hohner Universal 43/6-S
