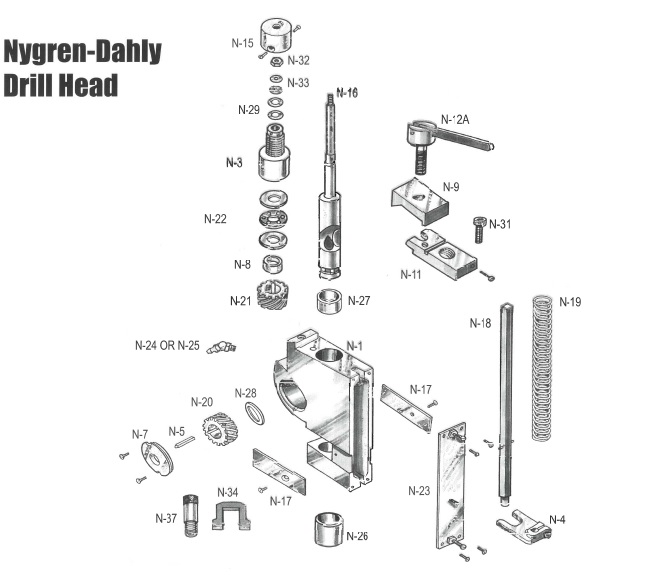

Nygren Drill Head Parts
Our Part # Item # Description Price Quantity
7240076M # 1 Nygren/Baum Drill Frame (NDNS-016B) Qty Needed 1 $480.25
7240050M # 3 Nygren/Baum Drill Spindle Sleve Threaded Style (NDNS-023B) Qty Needed 1 $42.23
7240080M # 4 Nygren/Baum Stripper Foot (NDNS-025) Qty Needed 1 $36.69
7240056M # 5 Nygren/Baum Gear Key (NDNS-100) Qty Needed 1 $10.00
7240084M # 7 Nygren/Baum Drill Gear Cap (NDNS-103A) Qty Needed 1 $28.68
7240058M # 8 Nygren/Baum Drill Spacer Collar (NDNS-104) Qty Needed 1 $11.36
7240086M # 9 Nygren/Baum Drill Frame Cap (NDNS-105-A) Qty Needed 1 $47.97
7240090 # 11 Nygren/Baum Drill Spindle Clamp Threaded New Style (NDNS-106-B) Qty Needed 1 $47.36
7240082M # 12 Nygren/Baum Drill Clamp Screw Lever Assy (DH-108A) Qty Needed 1 $71.31
7240032M # 15 Nygren/Baum Drill Spindle Sleeve Cap (New Style )(NDNS-109B) Qty Needed 1 $27.95
7240034M # 16 Nygren/Baum Drill Spindle (NDNCS-110AA) Qty Needed 1 $205.44
7240096M # 17 Nygren/Baum Drill Head Side Plate (NDNS-111-B) Qty Needed 1 $17.28
7240098M # 18 Nygren/Baum Drill Stripper Rod (DH-115-B) Qty Needed 1 $16.68
7240100M # 19 Nygren/Baum Drill Stripper Spring (NDNS-118-B) Qty Needed 1 $16.68
7240036M # 20 Nygren/Baum Drill Drive Shaft Gear with key) (NDNS-119) Qty Needed 1 $106.40
7240038M # 21 Nygren/Baum Drill Spindle Gear (NDNS-120) Qty Needed 1 $75.50
7240040M # 22 Nygren/Baum Drill Spindle Thrust Bearing (NDNS-121) Qty Needed 1 $59.37
7240022A # 23 Nygren/Baum Drill Front Plate - Notched (NDNS-205A) Qty Needed 1 $23.34
7240024M # 24 Nygren/Baum Drill Grease Fitting (ND-21996) Qty Needed 1 $4.66
7240102M # 25 Nygren/Baum Drill Grease Fitting Alemite Style Qty Needed 1 $3.86
7240042M # 26 Nygren/Baum Drill Lower Bushing (ND-24995) Qty Needed 1 $19.11
7240044M # 27 Nygren/Baum Drill Upper Bushing (ND-24994) Qty Needed 1 $25.83
7240046M # 28 Nygren/Baum Drill Drive Gear Washer (NDNS-3310) Qty Needed 1 $26.02
7240048M # 29 Nygren/Baum Drill Spindle Thrust Washer-Hard (ND-24996) Qty Needed 2 $12.34
7240026M # 31 Nygren/Baum Drill Drill Cap Screw (ND-20154) Qty Needed 2 $1.46
7240052M # 32 Nygren/Baum Drill 1/4-20 Jam Nut (ND-20614) Qty Needed 1 $0.67
7240054M # 33 Nygren/Baum Drill 1/4" Washer (ND-20489) Qty Needed 1 $0.67
7240074M # 34 Nygren/Baum Drill Horseshoe Clamp (ND-30338) (S-73A) Qty Needed 1 $25.00
DBT-724-0187A # 37 Nygren/Baum Drill Drill Extension $0.00
7240028M # 38 Nygren/Baum Drill Head Complete Assembly $995.00
